Located in Abuja, Nigeria, Kabby Flanges is a prominent high-quality flange manufacturer and supplier. We are experts in producing hot-dip galvanized flanges and have products that are engineered for high durability and resistance to corrosion, suitable for commercial and industrial uses Our focus on precision engineering means that each flange is crafted to meet strict standards, guaranteeing performance consistently offered in harsh environments. With its emphasis on quality, affordability, and quick delivery, Kabby Flanges is a reliable source for companies looking for durable and affordable piping and construction solutions.
Kabby Flanges, located in Abuja, Nigeria, stands out as a top-notch manufacturer and supplier of high-quality hot dipped galvanized flanges. Renowned for their durability, precision, and commitment to international standards, Kabby Flanges caters to various industries, including construction, water treatment, oil and gas, and chemical processing. They offer both standard and custom solutions, ensuring that every flange meets rigorous quality and performance criteria. With a strong emphasis on reliability, timely delivery, and customer satisfaction, Kabby Flanges has become a trusted partner for businesses across Nigeria looking for corrosion-resistant, long-lasting, and high-performance galvanized flanges.
| Specification | Galvanized Flanges |
|---|---|
| Order Quantity | 30 Piece |
| Size | >30 inch |
| Forging Methods | Casting/ Forging/ Rolling/ Cutting |
| Production Technique | Forged/ Heat treated and machined |
| Brand | Vishal Steel |
| Flange Type | Slip On/ Blind/ Weld Neck/ Threaded |
| Color | galvanised |
| Shape | round |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Finish | coated |
| Rated Pressure | as per requirement |
| Surface Finish | as per requirement |
| Diameter | depends on size |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Composition | Content |
|---|---|
| Sulfur, S | ≤ 0.050 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Carbon, C | 0.14 – 0.20 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | ≤ 0.040 % |

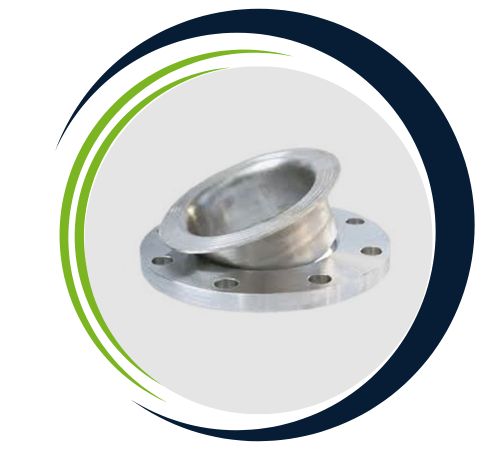

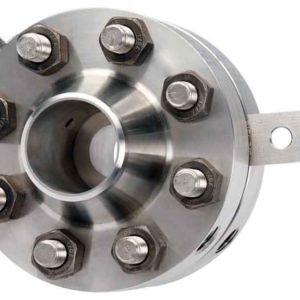

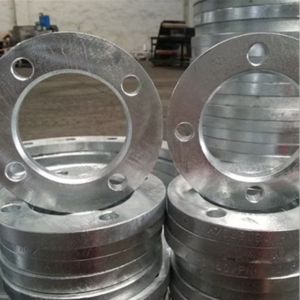

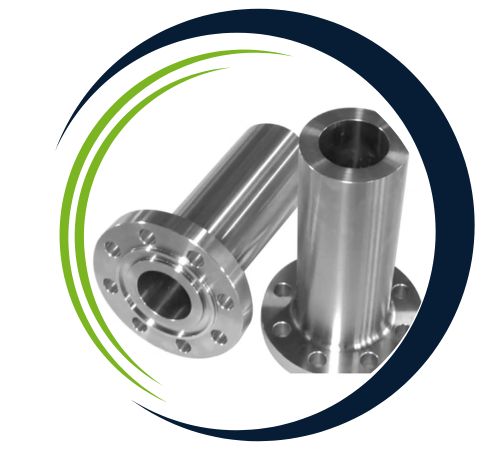

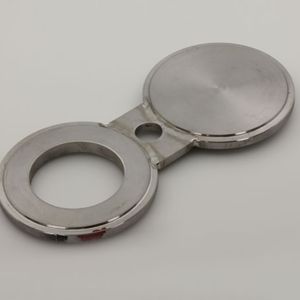

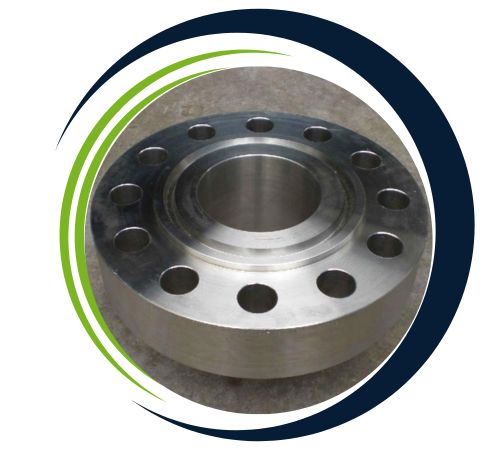

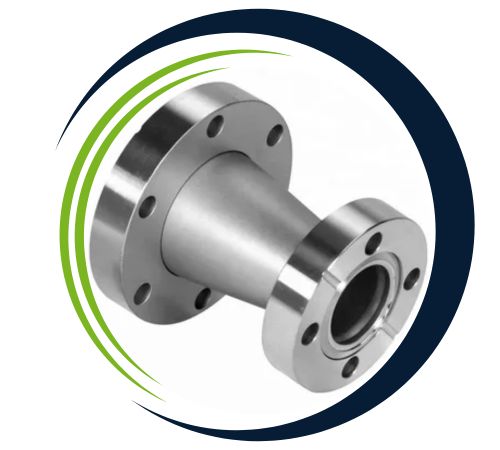

The hot dipped galvanized flanges produced by Kabby Flanges are crafted from premium-grade carbon steel or alloy steel, coated with a thick layer of zinc for exceptional corrosion protection. These flanges boast impressive tensile strength, hardness, and durability, making them perfect for both low and high-pressure applications. The hot dipping process guarantees a uniform coating, enhancing resistance to rust, wear, and harsh environmental conditions while ensuring dimensional accuracy and mechanical stability.
Hot-dip galvanized (HDG) flanges are generally used in applications that demand high corrosion resistance and durability. They are typically utilized in plumbing fixtures, water treatment and wastewater plants, and gas and oil pipes to provide leak-free connections and long-term operation In building they assist HVAC equipment and building system during extreme weather conditions HDG flanges find application in pharmaceutical uses, marine uses and agricultural machinery, where moisture and corrosive substances exposure is halted, and provides an assured and convenient solution for essential systems.

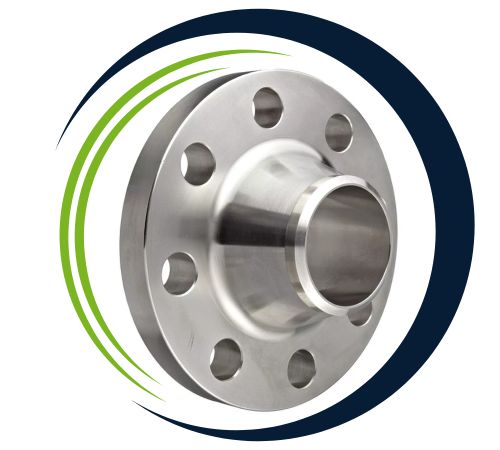

| Normal Size Of Steel Pipe in Inch | NPS (Normal Pipe Size) Size in Millimeter | O.D. | Wall Thickness | Hub Outer Diameter | Weld Neck Outer Diameter | ASME B16.5 WNRF Length | WNRF Bore Daimeter | Raised Face Diameter | Height Of Raised Face | PCD | Face Of WNRF |
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) | (J) | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | – | 34.9 | 2 | 60.3 | 1.6 |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | 42.9 | 2 | 69.9 | 1.6 | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 50.8 | 2 | 79.4 | 1.6 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 63.5 | 2 | 88.9 | 1.6 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 73 | 2 | 98.4 | 1.6 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 92.1 | 2 | 120.7 | 1.6 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 104.8 | 2 | 139.7 | 1.6 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 127 | 2 | 152.4 | 1.6 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 139.7 | 2 | 177.8 | 1.6 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 157.2 | 2 | 190.5 | 1.6 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 185.7 | 2 | 215.9 | 1.6 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 215.9 | 2 | 241.3 | 1.6 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 269.9 | 2 | 298.5 | 1.6 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 323.8 | 2 | 362 | 1.6 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 381 | 2 | 431.8 | 1.6 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 412.8 | 2 | 476.3 | 1.6 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 469.9 | 2 | 539.8 | 1.6 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 533.4 | 2 | 577.9 | 1.6 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 584.2 | 2 | 635 | 1.6 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 692.2 | 2 | 749.3 | 1.6 |
| Size | Specification |
|---|---|
| 3/4″ Pipe | 3-1/4″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Black Floor Pipe Flange |
| 1-1/2″ Pipe | 4-1/2″ OD, 7/8″ Hub Length, Black Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1-1/4″ Pipe | 4″ OD, 13/16″ Hub Length, Black Floor Pipe Flange |
| 3/4″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1/4″ Pipe | 2-3/16″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 3/8″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Galvanized Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Galvanized Floor Pipe Flange |
| Normal Pipe Size | Dimensions | Weight (Kilogram) | ||||
|---|---|---|---|---|---|---|
| Normal Pipe Size (Inch) | DN (mm) | Flanges In Millimeter | Flanges In Wall Thickness | Slip On | Weld Neck | Blind |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
These flanges find extensive use in piping systems, water pipelines, structural applications, and industrial equipment where corrosion resistance is essential. They create secure connections for pipes, valves, and pumps, minimizing maintenance needs and extending service life. With their robust construction, long-lasting durability, and resistance to environmental damage, Kabby Flanges’ hot dipped galvanized flanges are the go-to choice for industries that require reliable and cost-effective solutions.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
