Kabby Flanges is a reputable manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality DIN 2641 PN6 Lap Joint Flanges. These flanges are crafted for easy assembly and disassembly in piping systems, making them perfect for situations that require regular inspection or maintenance. Kabby Flanges utilizes cutting-edge manufacturing techniques, rigorous quality control, and top-notch material sourcing to ensure their DIN 2641 PN6 Lap Joint Flanges meet international standards. They find extensive use in industries like oil and gas, chemical processing, water treatment, and power generation, where dependable and adaptable flange connections are crucial.
You’ll often find DIN 2641 PN6 Lap Joint Flanges in pipelines, valves, pumps, and pressure vessels where easy disassembly is a must. They are particularly suited for low-pressure applications in oil and gas pipelines, chemical plants, water treatment facilities, and petrochemical industries. Their design guarantees secure, durable, and efficient connections while providing the flexibility needed for maintenance, inspection, and system modifications across various industrial sectors.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Pipe Parameter | Flange Dimension | Screw Dimension | Flange Weight | |||||||
| DN | ISO | DIN | D | d6 | b | k | e | No. of holes | d2 | KG/PCS |
| 10 | – | 14 | 75 | 16 | 10 | 50 | 2 | 4 | 11 | 0.3 |
| 17.2 | – | 75 | 19 | 10 | 50 | 2 | 4 | 11 | 0.29 | |
| 15 | – | 20 | 80 | 22 | 10 | 55 | 2 | 4 | 11 | 0.33 |
| 21.3 | – | 80 | 24 | 10 | 55 | 2 | 4 | 11 | 0.33 | |
| 20 | – | 25 | 90 | 28 | 10 | 65 | 2 | 4 | 11 | 0.42 |
| 26.9 | – | 90 | 30 | 10 | 65 | 2 | 4 | 11 | 0.41 | |
| 25 | – | 30 | 100 | 33 | 12 | 75 | 3 | 4 | 11 | 0.62 |
| 33.7 | – | 100 | 36 | 12 | 75 | 3 | 4 | 11 | 0.61 | |
| 32 | – | 38 | 120 | 42 | 12 | 90 | 3 | 4 | 14 | 0.88 |
| 42.4 | – | 120 | 46 | 12 | 90 | 3 | 4 | 14 | 0.85 | |
| 40 | – | 44.5 | 130 | 50 | 12 | 100 | 3 | 4 | 14 | 1.01 |
| 48.3 | – | 130 | 54 | 12 | 100 | 3 | 4 | 14 | 0.98 | |
| 50 | – | 57 | 140 | 62 | 12 | 110 | 3 | 4 | 14 | 1.11 |
| 60.3 | – | 140 | 65 | 12 | 110 | 3 | 4 | 14 | 1.08 | |
| 65 | 76.1 | – | 160 | 81 | 12 | 130 | 3 | 4 | 14 | 1.35 |
| 80 | 88.9 | – | 190 | 94 | 14 | 150 | 3 | 4 | 18 | 2.24 |
| 100 | – | 108 | 210 | 113 | 14 | 170 | 3 | 4 | 18 | 2.59 |
| 114.3 | – | 210 | 119 | 14 | 170 | 3 | 4 | 18 | 2.47 | |
| 125 | – | 133 | 240 | 138 | 14 | 200 | 3 | 8 | 18 | 3.1 |
| 139.7 | – | 240 | 145 | 14 | 200 | 3 | 8 | 18 | 2.93 | |
| 150 | – | 159 | 265 | 164 | 14 | 225 | 3 | 8 | 18 | 3.52 |
| 168.3 | – | 265 | 173 | 14 | 225 | 3 | 8 | 18 | 3.25 | |
| 200 | 219.1 | – | 320 | 225 | 16 | 280 | 3 | 8 | 18 | 4.85 |
| 250 | – | 267 | 375 | 273 | 20 | 335 | 3 | 12 | 18 | 7.67 |
| 273 | – | 375 | 279 | 20 | 335 | 3 | 12 | 18 | 7.26 | |
| 300 | 323.9 | – | 440 | 329 | 24 | 395 | 4 | 12 | 22 | 11.77 |
| 350 | 355.6 | – | 490 | 362 | 26 | 445 | 4 | 12 | 22 | 16.55 |
| – | 368 | 490 | 374 | 26 | 445 | 4 | 12 | 22 | 15.13 | |
| 400 | 406.4 | – | 540 | 413 | 28 | 495 | 4 | 16 | 22 | 19.56 |
| – | 419 | 540 | 426 | 28 | 495 | 4 | 16 | 22 | 17.67 | |
| 500 | 508 | – | 645 | 517 | 32 | 600 | 4 | 20 | 22 | 27.43 |
| 600 | 610 | – | 755 | 618 | 36 | 705 | 4 | 20 | 26 | 38.75 |
| 700 | 711 | – | 860 | 721 | 40 | 810 | 4 | 24 | 26 | 50.19 |
| 800 | 813 | – | 975 | 824 | 44 | 920 | 4 | 24 | 30 | 67.83 |
| 900 | 914 | – | 1075 | 926 | 48 | 1020 | 4 | 24 | 30 | 81.84 |
| 1000 | 1016 | – | 1175 | 1028 | 52 | 1120 | 4 | 28 | 30 | 95.74 |
| 1200 | 1220 | – | 1405 | 1232 | 60 | 1340 | 5 | 32 | 33 | 155.87 |
Kabby Flanges, a leading supplier in Abuja, Nigeria, offers an extensive selection of DIN 2641 PN6 Lap Joint Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2641 PN6 Lap Joint Flanges are widely used in piping systems requiring frequent disassembly or realignment. Their flexibility and ease of installation make them ideal for low-pressure applications in industries such as water treatment, chemical processing, and food processing. These flanges are commonly employed in non-corrosive fluid transport systems, ensuring leak-free connections and straightforward maintenance. They are particularly useful in situations where alignment adjustments are crucial, providing cost-effective and reliable solutions for various industrial and commercial piping setups.
Yes, we offer custom sizes for DIN 2641 PN6 Lap Joint Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2641 PN6 Lap Joint Flange Dimensions | Raised Face DIN 2641 PN6 Lap Joint Flange Manufacturer |

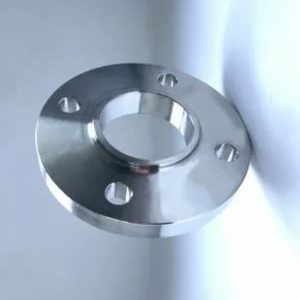

| Alloy Steel DIN 2641 PN6 Lapped Joint Flanges | Copper Nickel DIN 2641 PN6 Lap Joint Flanges at Best Price |
| DIN 2641 PN6 Lap Joint Flange Manufacturer | Flat Face DIN 2641 PN6 Lap Joint Flange Manufacturer |
| 18 inch DIN 2641 PN6 Carbon Steel Lap Joint Flange | DIN 2641 PN6 Lap Joint Flange Dimensions in mm |
| Stainless Steel DIN 2641 PN6 Lap Joint Flange | ASTM B564 Raised Faced DIN 2641 PN6 Lap Joint Flanges |
| DIN 2641 PN6 LJ Flange Exporter | DIN 2641 PN6 Lap Joint Flange Pressure Ratings |
| DIN 2641 PN6 LJ Flange Stockist in Nigeria | Raised Faced DIN 2641 PN6 Slip-On flanges Dealer in Nigeria |
| DIN 2641 PN6 LJ Flanges Supplier in Abuja | Alloy Steel DIN 2641 PN6 Lap Joint Flanges Manufacturer in Nigeria |
| Raised Face DIN 2641 PN6 Lap Joint Plate Flanges | Titanium DIN 2641 PN6 Lapped Joint Flanges |
| DIN 2641 PN6 Lapped Joint FF Flange Supplier | Suppliers of DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Supplier in Ibadan | Duplex Steel DIN 2641 PN6 Lap Joint Flanges |
| 4 inch Stainless Steel DIN 2641 PN6 Lap Joint Flange | DIN 2641 PN6 Lap Joint RF Flanges Stockholder |
| 30 inch DIN 2641 PN6 Lap Joint Flange Dealer | Raised Face DIN 2641 PN6 Lap Joint Flanges Manufacturer |
| 8 Inch DIN 2641 PN6 Lapped Joint Pipe Flanges | DIN 2641 PN6 Lap Joint Flanges Stockist |
| Carbon Steel Raised Face DIN 2641 PN6 Lap Joint Flange Stockist | Duplex Steel DIN 2641 PN6 LJ Flanges Supplier in Abuja |
| DIN 2641 PN6 LJ Flanges Distributor in Lagos | Flat Face DIN 2641 PN6 Lap Joint Flanges Exporter |
| DIN 2641 PN6 Lapped Joint Flanges Supplier in Port Harcourt | MS DIN 2641 PN6 Lap Joint Flange |
| ASME SA105N Raised Faced DIN 2641 PN6 Lap Joint Flanges | 18 inch Carbon Steel DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Wholesaler | DIN 2641 PN6 LJ Flanges Supplier |
| Nickel Alloy DIN 2641 PN6 Lapped Joint Flange | Mild Steel DIN 2641 PN6 Lap Joint Flange |
| Carbon Steel DIN 2641 PN6 Lapped Joint Flange | DIN 2641 PN6 Lap Joint RF Flange Supplier |
| German Standard DIN 2641 PN6 Lap Joint Flanges | DIN 2641 PN6 Lap Joint Flange Supplier in Nigeria |
| DIN 2641 PN6 Large Diameter Lap Joint Flange | 30 Inch DIN 2641 PN6 Lap Joint Pipe Flange Dimensions |
You’ll often find DIN 2641 PN6 Lap Joint Flanges in pipelines, valves, pumps, and pressure vessels where easy disassembly is a must. They are particularly suited for low-pressure applications in oil and gas pipelines, chemical plants, water treatment facilities, and petrochemical industries. Their design guarantees secure, durable, and efficient connections while providing the flexibility needed for maintenance, inspection, and system modifications across various industrial sectors.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
