Carbon Steel Orifice Flanges Manufacturer and Supplier In Abuja, Nigeria

Kabby Flanges, a reputable manufacturer and supplier located in Abuja, Nigeria, focuses on crafting high-performance Carbon Steel Orifice Flanges that are essential for precise flow measurement and effective pressure management in industrial piping systems. Renowned for their exceptional strength, durability, and meticulous engineering, these flanges are produced in line with international standards to guarantee reliable performance even in the toughest conditions. Kabby Flanges offers Carbon Steel Orifice Flanges that are perfect for the oil and gas, petrochemical, and power generation sectors, ensuring dependable operation, straightforward installation, and impressive resistance to wear and corrosion.

Carbon Steel Orifice Flanges Kano, Price of Inconel Orifice Flanges, Carbon Steel Orifice Flanges Exporter in Nigeria, Carbon Steel Orifice Flanges Stockist in Ibadan, Carbon Steel Orifice Flanges Exporter in Kano, Carbon Steel Orifice Flanges Suppliers in Lagos, Carbon Steel Orifice Flanges Price in Nigeria, List in Ibadan, Carbon Steel Orifice Flanges Port Harcourt

Carbon Steel Orifice Flanges

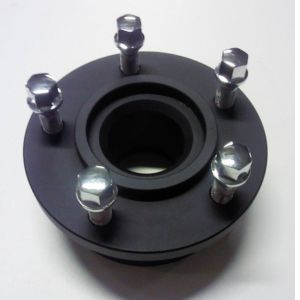

CS Orifice Flanges

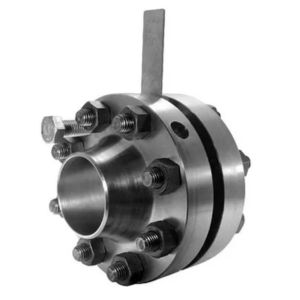

Carbon Steel Orifice Raised Face Flanges

These Carbon Steel Orifice Flanges are primarily made up of carbon, manganese, silicon, phosphorus, and sulfur. The carbon content boosts strength and hardness, while manganese enhances ductility and toughness. With a tensile strength ranging from 485 to 620 MPa and a yield strength of about 250 MPa, they provide excellent pressure-bearing capabilities. They maintain their structural integrity in high-temperature settings and are known for their good weldability and machinability, making them ideal for precision flow control and measurement tasks across various industries.

Carbon Steel Orifice Flanges Exporters in Ibadan, Carbon Steel Orifice Flanges Manufacturers in Lagos, Carbon Steel Orifice Flanges Weight Chart in Nigeria, Carbon Steel Orifice Flanges Weight Chart, Carbon Steel Orifice Flanges Supplier in Abuja, Carbon Steel Orifice Flanges Supplier in Ibadan, Carbon Steel Orifice Flanges Stockists in Lagos, Carbon Steel Orifice Flanges Price, Carbon Steel Orifice Flanges Supplier in Port Harcourt

Largest Carbon Steel Orifice Flanges Supplier in Abuja, Nigeria

Kabby Flanges, a premier supplier in Abuja, Nigeria, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Carbon Steel Orifice Flanges Specification

Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105

Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.

Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)

Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Carbon Steel Orifice Flanges dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	125	36.6	54	33.4	81	50.8	2	88.9	6.4	4	5/8	125	3/4	M16	4.5
1 1/2	40	155	36.6	70	48.3	84	73	2	114.3	6.4	4	3/4	135	7/8	M20	6.5
2	50	165	36.6	84	60.3	84	92.1	2	127	6.4	8	5/8	125	3/4	M16	7
2 1/2	65	190	36.6	100	73	87	104.8	2	149.2	6.4	8	3/4	135	7/8	M20	7.5
3	80	210	36.6	117	88.9	87	127	2	168.3	9.5	8	3/4	135	7/8	M20	9.4
4	100	255	36.6	146	114.3	90	157.2	2	200	12.7	8	3/4	135	7/8	M20	13.2
6	150	320	36.6	206	168.3	98	215.9	2	269.9	12.7	12	3/4	135	7/8	M20	14.6
8	200	380	39.7	260	219.1	110	269.9	2	330.2	12.7	12	7/8	145	1	M24	30
10	250	445	46.1	321	273	116	323.8	2	387.3	12.7	16	1	165	1 1/8	M27	41
12	300	520	49.3	375	323.8	129	381	2	450.8	12.7	16	1 1/8	180	1 1/4	M30	62
14	350	585	52.4	425	355.6	141	412.8	2	514.4	12.7	20	1 1/8	185	1 1/4	M30	84
16	400	650	55.6	483	406.4	144	469.9	2	571.5	12.7	20	1 1/4	195	1 3/8	M33	111
18	450	710	58.8	533	457	157	533.4	2	628.6	12.7	24	1 1/4	205	1 3/8	M33	138
20	500	775	62	587	508	160	584.2	2	685.8	12.7	24	1 1/4	215	1 3/8	M33	171
24	600	915	68.3	702	610	167	692.2	2	812.8	12.7	24	1 1/2	240	1 5/8	M39	247

Carbon Steel Orifice Flanges find extensive application in the oil and gas, chemical processing, power generation, and water treatment industries for monitoring and regulating fluid flow rates. They are positioned between two pipe sections, featuring an orifice plate that dictates flow velocity and pressure drop. These flanges are particularly suited for systems that require accurate flow monitoring, such as steam, gas, or liquid transport pipelines. Their robust strength, resistance to corrosion, and ease of maintenance make them a great fit for both high-pressure and high-temperature industrial environments.

Carbon Steel Orifice Flanges Stockist in Nigeria, Carbon Steel Orifice Flanges Nigeria, Carbon Steel Orifice Flanges Exporters in Kano, Carbon Steel Orifice Flanges Price List, Carbon Steel Orifice Flanges Price List in Kano, Carbon Steel Orifice Flanges Manufacturer in Nigeria, Carbon Steel Orifice Flanges Price List in Nigeria

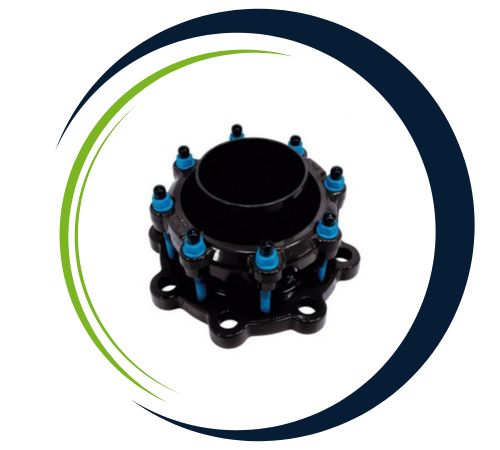

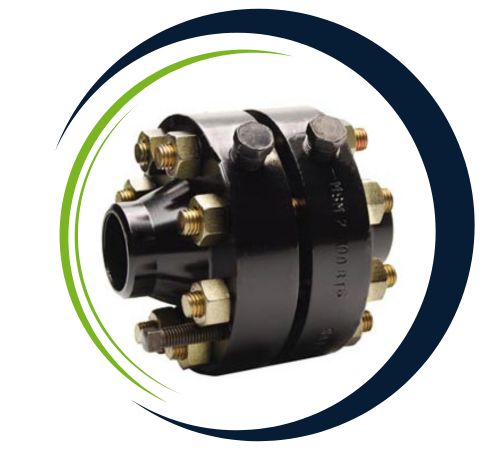

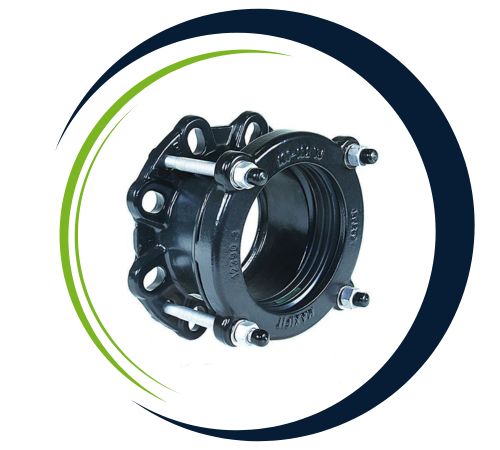

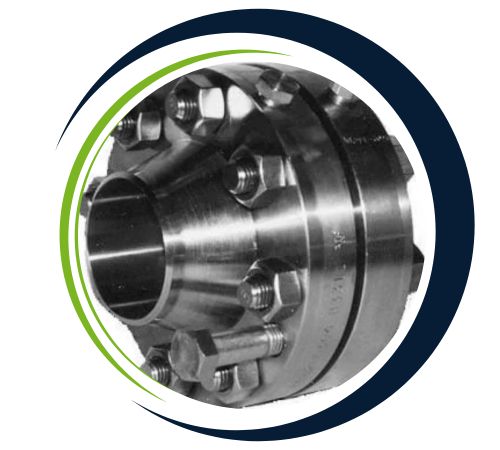

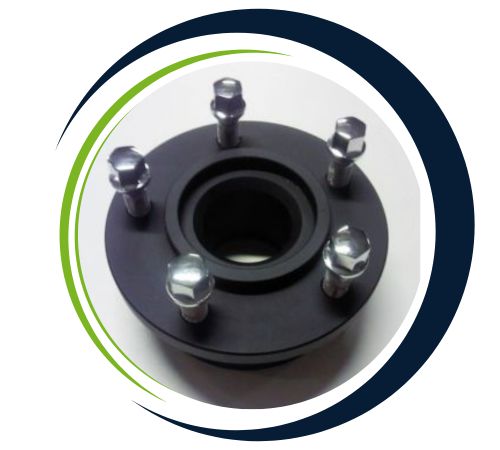

Types of Carbon Steel Orifice Flanges

Are Custom Sizes Available for Carbon Steel Orifice Flanges?

Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
