BS 10 Table E Flanges Manufacturer and Supplier In Abuja, Nigeria

Kabby Flanges, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch **BS 10 Table E Flanges** that are crafted in line with the British Standard BS 10, specifically for medium-pressure piping applications. These flanges are designed to be durable, precise in dimensions, and resistant to corrosion, making them perfect for systems that operate at around 200 psi. Made from high-quality materials like stainless steel, carbon steel, alloy steel, and nickel alloys, BS 10 Table E Flanges provide strong, leak-proof connections. Kabby Flanges is committed to meeting international standards, ensuring that their flange solutions are reliable and long-lasting for industries such as oil and gas, chemicals, power, and marine.

BS 10 Table E Flanges In Nigeria, BS10 Table E Flange Distributor In United kingdom, BS 10 Table E Pipe Flange Abuja, BS 10 Table E Forged Flanges Lagos, BS 10 Table E Plate Flange Ibadan, BS10 Table E Flange Manufacturer in Port Harcourt, BS 10 Table E Flanges Kano.

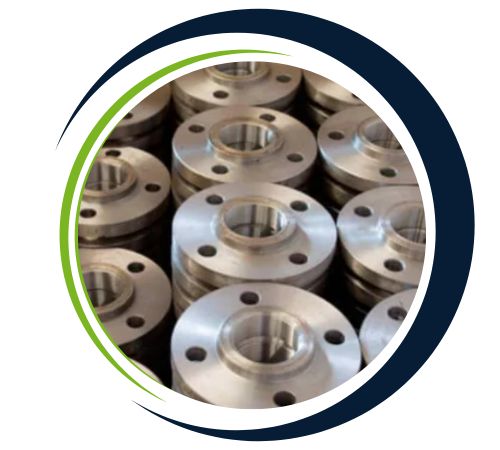

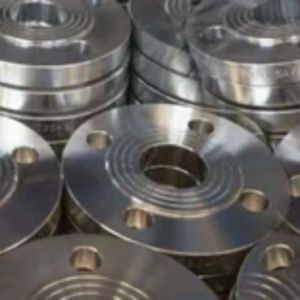

BS 10 Table E Flanges

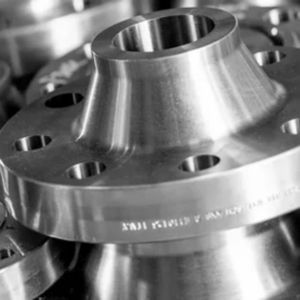

BS 10 Table E Pipe Flange

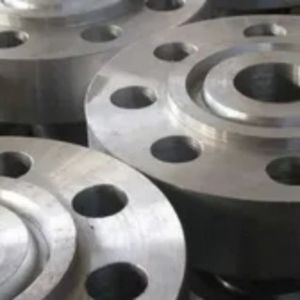

BS 10 Table E Plate Flange

**BS 10 Table E Flanges** are constructed from premium materials that may include carbon, manganese, silicon, chromium, nickel, and molybdenum, depending on the selected metal grade. They boast impressive tensile strength ranging from 400–600 MPa and yield strength between 200–300 MPa, along with excellent ductility and weldability. These flanges also show remarkable resistance to oxidation, corrosion, and stress cracking under moderate pressure and temperature conditions, guaranteeing dependable mechanical performance and durability.

BS 10 Table E Flanges Stockist in Nigeria, BS 10 Table E Flanges Stockist in United kingdom, BS 10 Table E Flanges Manufacturer in Abuja, BS 10 Table E Flanges Manufacturer in Lagos, BS 10 Table E Flanges Supplier in Ibadan, BS 10 Table E Flanges Supplier in Port Harcourt, BS 10 Table E Flanges Kano.

Largest BS 10 Table E Flanges in Abuja, Nigeria

Kabby Flanges, a leading supplier in Abuja, Nigeria, offers an extensive selection of BS 10 Table E Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

BS 10 Table E Flanges Specification

Size	(1/2″) To (48″)
Size Of Bore Diameter Flange	NPS ≤ 10
Standard Dimensions	EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API.
Minimum Pressure	150# To 2500#
Flange Face Type Manufacturer	Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face.
Top Six Type Of Flange	Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
Standard Materials	Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel.
Thickness Length	NPS ≤ 18
Manufacturing Process	Forged/ Machined/ Heat Treated
Other Type Of Flange	Forged/ Plate/ Threaded

BS 10 Table E Flange Dimensions

N.B. SIZE		D	K	L	A	C	N1	N2	B	H1	H2	R1	R2	HOLES
IN	mm
½”	15	95.3	66.8	14.5	21.3	6.4	27.0	33.3	22.4	9.5	22.2	6.4	1.6	4
¾”	20	101.6	73.2	14.5	26.7	6.4	33.3	38.1	27.7	11.1	22.2	6.4	1.6	4
1″	25	114.3	82.6	14.5	33.5	7.2	42.9	47.6	34.6	11.1	22.2	6.4	1.6	4
1 ¼”	32	120.7	87.4	14.5	42.2	7.9	49.2	55.6	43.2	11.1	25.4	6.4	1.6	4
1 ½”	40	133.4	98.6	14.5	48.3	8.7	58.7	61.9	49.5	12.7	28.6	6.4	1.6	4
2″	50	152.4	114.3	17.5	60.5	9.5	69.9	74.6	62.0	12.7	28.6	6.4	1.6	4
2 ½”	65	165.1	127.0	17.5	73.2	10.3	82.6	90.5	74.7	15.9	31.8	6.4	1.6	4
3″	80	184.2	146.1	17.5	88.9	11.1	101.6	106.4	90.7	15.9	34.9	6.4	1.6	4
3 ½”	88	203.2	165.1	17.5	101.6	11.9	114.3	119.1	103.4	17.5	34.9	6.4	1.6	4
4″	100	215.9	177.8	17.5	114.3	12.7	130.2	133.4	116.1	19.1	41.3	9.5	3.2	4
5″	125	254.0	209.6	17.5	141.2	14.3	152.4	160.3	143.8	19.1	44.5	9.5	3.2	8
6″	150	279.4	235.0	17.5	168.4	17.5	184.2	185.7	171.7	19.1	47.6	9.5	3.2	8
8″	200	336.6	292.1	17.5	219.2	19.1	241.3	241.3	221.5	22.2	50.8	9.5	3.2	8
10″	250	406.4	355.6	22.2	273.1	22.2	292.1	298.5	276.4	27.0	63.5	9.5	3.2	8
12″	300	457.2	406.4	22.2	323.9	25.4	342.9	349.3	325.9	28.6	69.9	9.5	4.8	12
14″	350	527.1	469.9	25.4	355.6	28.6	406.4	–	359.2	–	73.0	9.5	4.8	12
16″	400	577.9	520.7	25.4	406.4	31.8	431.8	–	410.5	–	–	–	–	12
18″	450	641.4	584.2	25.4	457.2	34.9	–	–	461.8	–	–	–	–	12

BS 10 Table E Flange Weight chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
BS 10 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14

**BS 10 Table E Flanges** are commonly utilized in pipelines and equipment that transport fluids and gases under medium pressure. They are particularly well-suited for refineries, chemical plants, desalination systems, shipbuilding, and water treatment facilities. Available in various styles such as weld neck, slip-on, blind, threaded, and socket weld, they make installation and maintenance a breeze. With their outstanding corrosion resistance, sturdy construction, and precise dimensions, BS 10 Table E Flanges ensure safe, efficient, and long-lasting operation in both industrial and marine piping systems.

BS 10 Table E Flanges In Nigeria, BS10 Table E Flange Distributor In United kingdom, BS 10 Table E Pipe Flange Abuja, BS 10 Table E Forged Flanges Lagos, BS 10 Table E Plate Flange Ibadan, BS10 Table E Flange Manufacturer in Port Harcourt, BS 10 Table E Flanges Kano.

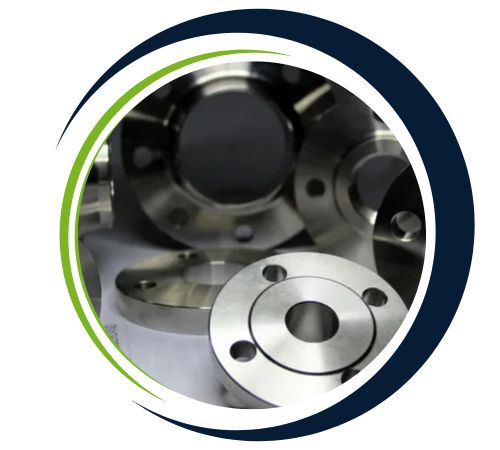

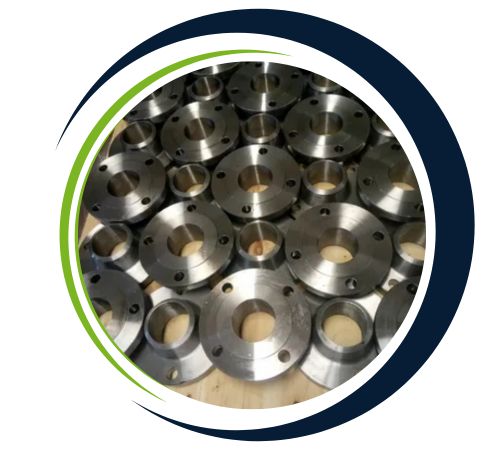

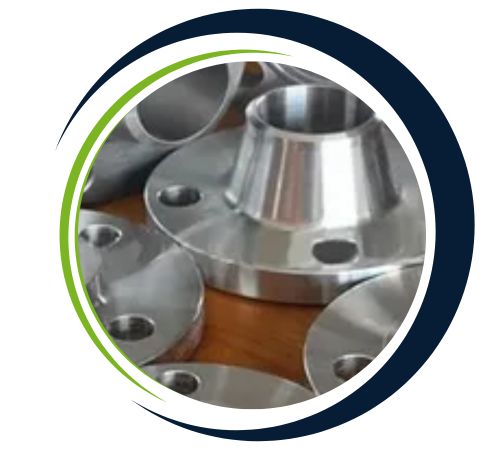

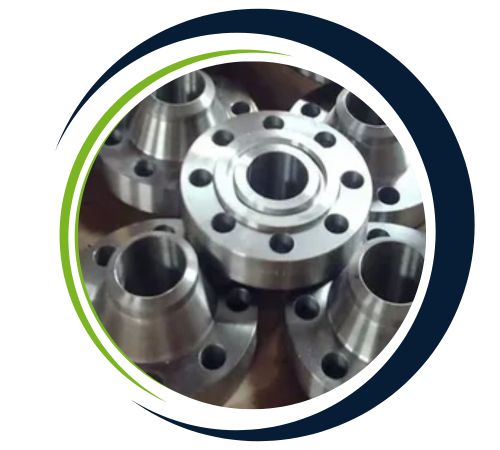

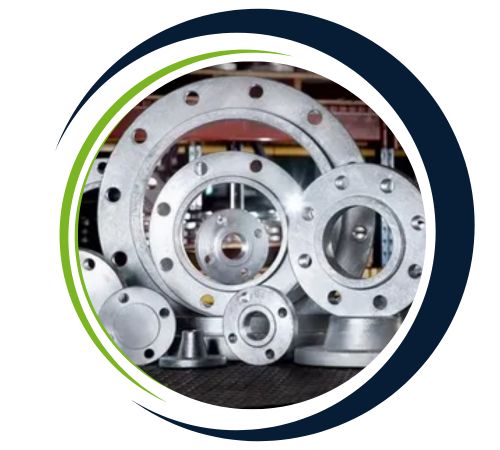

Types of BS 10 Table E Flanges

Are Custom Sizes Available for BS 10 Table E Flanges?

Yes, we offer custom sizes for BS 10 Table E Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
