ANSI B16.5 Class 600 Flanges Manufacturer and Supplier In Abuja, Nigeria

Kabby Flanges, a well-respected manufacturer and supplier located in Abuja, Nigeria, specializes in precision-engineered **ANSI B16.5 Class 600 Flanges** that are perfect for high-pressure piping systems. These flanges are crafted in accordance with **ASME/ANSI B16.5 standards**, guaranteeing top-notch performance, accuracy, and safety in even the most demanding industrial settings. Made from high-quality materials like stainless steel, carbon steel, alloy steel, and duplex steel, **Class 600 Flanges** from Kabby Flanges offer remarkable strength, corrosion resistance, and durability, making them a great fit for industries such as oil and gas, chemical processing, power generation, and offshore engineering.

ANSI B16.5 Class 600 Flange Nigeria, ANSI B16.5 Class 600 Forged Flanges United kingdom, AWWA Class 600 Flanges Abuja, 600 LB Plate Flange Lagos, 600 LBS Flange Ibadan, ANSI B16.5 600 LBS Pipe Flange Port Harcourt, Raised Face Class 600 Flanges Manufacturer in Kano.

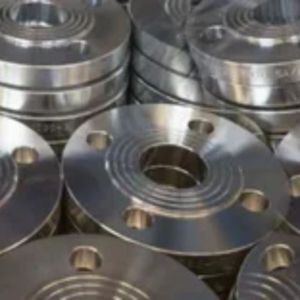

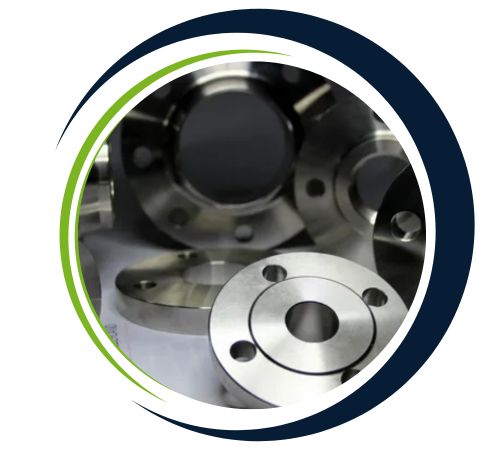

600 LBS Flanges

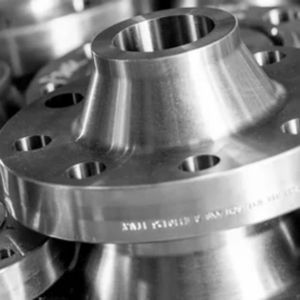

ANSI B16.5 Class 600 Flange

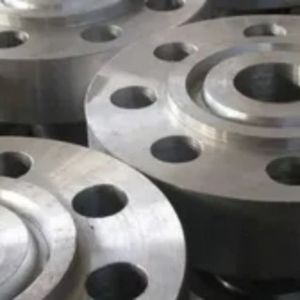

ANSI B16.5 Class 600 Forged Flanges

**ANSI B16.5 Class 600 Flanges** are made from materials that include carbon, manganese, chromium, nickel, and molybdenum, which provide outstanding tensile and yield strength, along with excellent resistance to oxidation and corrosion. They usually have a tensile strength ranging from 415 to 690 MPa and maintain reliable mechanical integrity even under high pressures and temperatures. With a focus on precision, these flanges come in various types, including weld neck, blind, slip-on, threaded, and socket weld configurations.

600 LBS Flanges Stockist in Nigeria, 600 LBS Flanges Manufacturer in United kingdom, 600 LBS Flanges Stockist in Abuja, 600 LBS Flanges Supplier in Lagos, 600 LBS Flanges Supplier in Ibadan, 600 LBS Flanges Manufacturer in Port Harcourt, 600 LBS Flanges Kano.

Largest ANSI B16.5 Class 600 Flanges Supplier in Abuja, Nigeria

Kabby Flanges, a leading supplier in Abuja, Nigeria, offers an extensive selection of ANSI B16.5 Class 600 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

ANSI B16.5 Class 600 Flanges Specification

Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards	B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges.
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Threaded / Forged / Plate /Screwed
Flange supporting material	Ring Joint, Gasket, Flange Bolts
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most Common Types	Slip-On Ring Flange (SORF), Class 600 Weld Neck Ring Flange (WNRF), Class 600 Threaded Ring Flange, Class 600 Socket Weld Ring Flange (SWRF), Class 600 Blind Ring Flange (BLRF), Class 600 Ring Type Joint Flange (RTJF), Class 600 Lap Joint Ring Flange (LJRF), Class 600
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 600 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Specialized Manufacturer of	Class 600 Blind Flanges Class 600 Large Diameter Flange Class 600 Table Flanges Class 600 Sorf Flange Class 600 Socketweld Flanges Class 600 Threaded Flanges Class 600 Weld Neck Flanges Class 600 Slip-On Flanges Class 600 Loose Flanges Class 600 AS 4087 Water Flanges Class 600 Lap Joint Flanges Class 600 Plate Flanges Class 600 Orifice Flanges
Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 German (DIN) American standard (ANSI) Any other specilised flanges British standard (BS) The other standard : AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

ANSI B16.5 Class 600 Flanges Dimensions

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	95	14.3	52.4	22.2	22.2	66.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	19	43
1	124	17.5	61.9	27.0	27.0	89.0	4	19	51
1-1/4	133	20.7	66.7	28.6	28.6	98.5	4	19	64
1-1/2	156	22.3	69.8	31.8	31.8	114.5	4	22	73
2	165	25.4	73.0	36.5	36.5	127.0	8	19	92
2-1/2	190	28.6	79.4	41.3	41.3	149.0	8	22	105
3	210	31.8	82.6	46.0	46.0	168.0	8	22	127
3-1/2	229	35.0	85.7	49.2	49.2	184.0	8	25	140
4	273	38.1	101.6	54.0	54.0	216.0	8	25	157
5	330	44.5	114.3	60.3	60.3	266.5	8	29	186
6	356	47.7	117.5	66.7	66.7	292.0	12	29	216
8	419	55.6	133.4	76.2	76.2	349.0	12	32	270
10	508	63.5	152.4	85.7	115.1	432.0	16	85	324
12	559	66.7	155.6	92.1	111.1	489.0	20	35	381
14	603	69.9	165.1	93.7	117.5	527.0	20	38	413
16	686	76.2	177.8	106.4	127.0	603.0	20	41	470
18	743	82.6	184.2	117.6	139.7	654.0	20	45	533
20	813	88.9	190.5	127.0	165.1	724.0	24	45	584
24	940	101.6	203.2	139.7	184.2	838.0	24	51	692

You’ll find **ANSI B16.5 Class 600 Flanges** widely used in high-pressure pipelines, refineries, petrochemical plants, and power stations. They create a secure, leak-proof connection between piping components, ensuring both system efficiency and operational safety. These flanges can handle pressure ratings of up to **1480 psi at 38°C (100°F)** and are designed to endure thermal expansion and mechanical stress. With their combination of strength, precision, and corrosion resistance, **ANSI B16.5 Class 600 Flanges** from Kabby Flanges deliver reliable performance in the toughest industrial environments.

ANSI B16.5 Class 600 Flange Nigeria, ANSI B16.5 Class 600 Forged Flanges United kingdom, AWWA Class 600 Flanges Abuja, 600 LB Plate Flange Lagos, 600 LBS Flange Ibadan, ANSI B16.5 600 LBS Pipe Flange Port Harcourt, Raised Face Class 600 Flanges Manufacturer in Kano.

Types of ANSI B16.5 Class 600 Flanges

Are Custom Sizes Available for ANSI B16.5 Class 600 Flanges?

Yes, we offer custom sizes for ANSI B16.5 Class 600 Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
